Industrial valves need accurate movement, steady torque, and reliable operation. A suitable gearbox helps operators control valves smoothly while reducing manual effort. Among various gearbox options, the Quarter Turn Warm Gearbox supports applications that require controlled rotary movement.
These gearboxes can work with several quarter-turn valves. They help convert input motion into the torque needed to open or close a valve. As a result, industries can improve operational control and reduce unnecessary strain on valve components.
Jayveer Enterprise provides industrial gearbox solutions for different valve applications. However, choosing the right gearbox requires a clear understanding of torque, valve type, operating conditions, and installation requirements.
What Is a Quarter Turn Warm Gearbox?

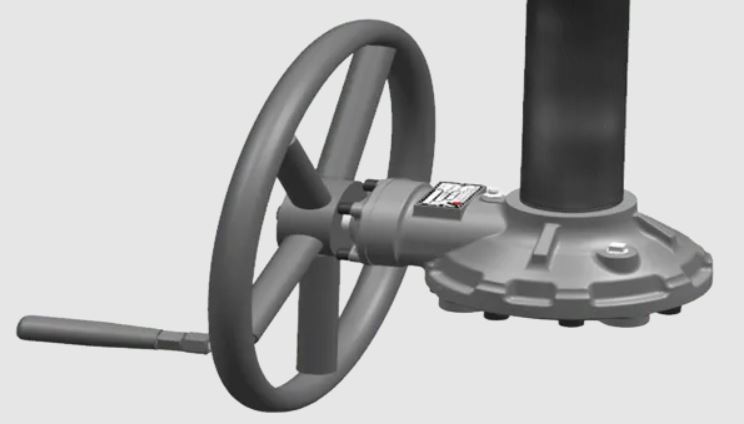

A Quarter Turn Warm Gearbox is a mechanical drive system designed for valves that operate through a quarter-turn movement. The term “quarter turn” refers to approximately 90 degrees of valve rotation.
The gearbox transfers rotational force from the input shaft to the valve stem. Therefore, it helps operators achieve controlled opening and closing.
The worm gear mechanism also provides useful torque multiplication. This feature makes the gearbox suitable for applications where valves need higher output torque.
Common applications include:
- Butterfly valve operation
- Ball valve operation
- Industrial process systems
- Water treatment plants
- Pipeline systems
- Chemical processing facilities
- Manufacturing plants
Because of its compact design, this type of gearbox can fit into many industrial installations. Proper sizing remains essential for safe and efficient operation.
How Does a Quarter Turn Warm Gearbox Work?
The working principle is relatively simple. An input shaft transfers rotational movement to a worm shaft. The worm then engages with a worm wheel connected to the output shaft.
As the worm rotates, it turns the worm wheel. This action creates the required output torque for valve operation.
The gear ratio controls the relationship between input speed and output movement. A higher ratio can provide greater torque while reducing output speed.
This controlled movement offers several practical benefits. For example, operators can open or close a valve with greater precision.
Key Working Components
Several components contribute to gearbox performance. These typically include:
- Worm shaft
- Worm wheel
- Output shaft
- Housing
- Bearings
- Sealing components
- Lubrication system
- Handwheel or actuator connection
Each component must work properly to maintain smooth operation. Therefore, manufacturers should use suitable materials and accurate machining methods.
Benefits of Using a Quarter Turn Warm Gearbox
A well-selected Quarter Turn Warm Gearbox can improve valve operation in several ways. It can also support consistent performance in demanding industrial environments.
1. High Torque Output
The worm gear arrangement can multiply input torque. Consequently, operators can control valves that require substantial rotational force.
2. Controlled Valve Movement
The gearbox provides controlled output movement. This helps reduce sudden valve movement and supports smoother operation.
3. Compact Construction
Many industrial facilities have limited installation space. A compact gearbox can simplify installation where space remains restricted.
4. Reduced Manual Effort
Manual valve operation can become difficult when valves require high torque. A gearbox reduces the effort required to operate such valves.
5. Reliable Industrial Performance
Properly manufactured gearboxes can handle regular industrial use. However, performance depends on correct sizing, installation, lubrication, and maintenance.
6. Versatile Applications
Quarter-turn gearboxes can support different valve types and industrial processes. Their versatility makes them useful across water, chemical, manufacturing, and utility applications.
Choosing the Right Quarter Turn Warm Gearbox
Selecting the correct gearbox involves more than checking the valve size. Engineers should consider several operating factors before making a decision.
First, determine the valve’s required operating torque. The gearbox should provide enough output torque for reliable movement.
Next, check the valve type and stem configuration. Different valves can have different mounting and torque requirements.
Operating conditions also matter. Temperature, humidity, dust, chemicals, and outdoor exposure can affect gearbox performance.
Consider the following factors:
- Required output torque
- Valve type
- Valve size
- Operating frequency
- Mounting arrangement
- Environmental conditions
- Input method
- Lubrication requirements
- Available installation space
Furthermore, selecting a gearbox with suitable safety margins can support long-term reliability. Avoid choosing a unit that operates continuously at its maximum rated capacity.
Importance of Proper Maintenance
Regular maintenance can extend gearbox service life. Operators should inspect the housing, seals, mounting bolts, and operating mechanism periodically.
Lubrication also plays an important role. The correct lubricant helps reduce friction between moving components.
In addition, unusual noise, excessive vibration, or difficult valve movement may indicate a problem. Early inspection can prevent more serious mechanical damage.
Industrial Applications of Quarter Turn Gearboxes
Quarter-turn gearboxes support many industrial operations. Water treatment plants use them for controlling pipelines and process valves.
Similarly, chemical facilities can use them in systems that require controlled fluid movement. Manufacturing plants may also install them on process lines and utility systems.
Power and infrastructure projects can benefit from reliable valve control as well. In these environments, consistent operation helps maintain process stability.
The correct gearbox can also support automation systems. When paired with suitable actuators, it can become part of a controlled valve operating system.
Jayveer Enterprise focuses on industrial gearbox requirements across different applications. Buyers should still evaluate technical specifications carefully before selecting a particular model.
Why Correct Gearbox Sizing Matters
Incorrect sizing can create operational problems. An undersized gearbox may struggle to deliver the required torque.
On the other hand, excessive capacity can increase equipment cost and create unnecessary design complexity.
Therefore, engineers should match the gearbox with actual valve operating requirements. They should also consider starting torque, seating torque, breakaway torque, and operating conditions.
A proper technical evaluation helps achieve better performance. It also reduces the risk of premature component wear.
Frequently Asked Questions (5 FAQs)
1. What is a Quarter Turn Warm Gearbox used for?
It is mainly used to operate quarter-turn valves. Common examples include butterfly and ball valves.
2. How does a worm gearbox increase torque?
The worm and worm wheel arrangement provides mechanical advantage. This allows lower input force to produce higher output torque.
3. Which valves can use a quarter-turn gearbox?
Butterfly valves and ball valves commonly use quarter-turn gearboxes. However, compatibility depends on valve design and mounting requirements.
4. How can gearbox service life be improved?
Regular inspection, correct lubrication, proper installation, and suitable operating conditions can improve service life.
5. How do I select the correct gearbox?
Start by checking valve torque, valve type, operating conditions, mounting details, and required output movement. Technical guidance can help confirm compatibility.
Conclusion
A Quarter Turn Warm Gearbox can make valve operation smoother, more controlled, and less demanding. Its worm gear mechanism provides useful torque multiplication for many industrial applications.
However, correct selection remains essential. Engineers should consider valve torque, operating conditions, mounting requirements, and maintenance needs before choosing a gearbox.
For reliable industrial gearbox solutions, businesses can explore the available options from Jayveer Enterprise and select equipment based on their specific valve requirements.
