Industrial pipelines need reliable valves to control the movement of liquids, gases, and other process media. However, large gate valves can require considerable force to open and close. A Gate Valve Gearbox provides mechanical assistance and makes valve operation smoother and more manageable.

Gate valves are widely used in water treatment plants, oil and gas facilities, power stations, chemical industries, and industrial pipelines. They are especially useful when the application requires dependable isolation of a pipeline.

As valve size increases, manual operation can become difficult. Therefore, a properly selected Gate Valve Gearbox helps operators apply the required torque with less physical effort.

Moreover, the right gearbox can support consistent valve movement and reduce unnecessary stress on operating components. For this reason, gearbox selection deserves careful attention during industrial valve planning.

What Is a Gate Valve Gearbox?

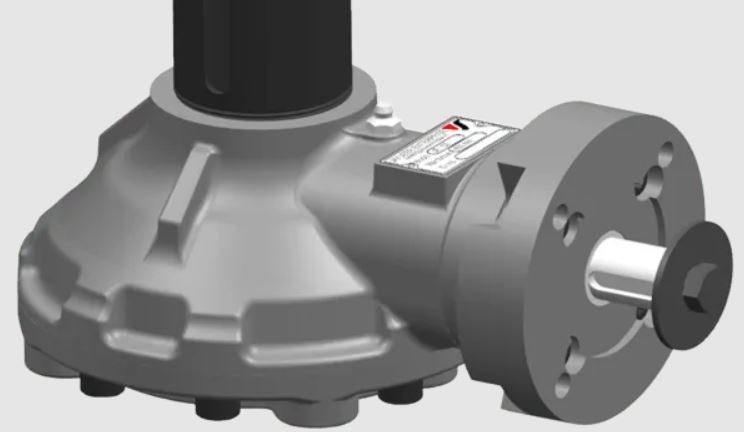

A Gate Valve Gearbox is a mechanical transmission unit designed to operate gate valves. It converts the input force from a handwheel or operating mechanism into the torque required to move the valve stem.

Gate valves generally use a gate that moves upward or downward to control flow. The gearbox helps rotate the stem efficiently, allowing the gate to reach its open or closed position.

How a Gate Valve Gearbox Works

The gearbox contains gears that increase mechanical advantage. Consequently, an operator can generate greater output torque without applying excessive manual force.

The input movement turns the internal gear mechanism. The gearbox then transfers this movement to the valve stem.

A properly sized Gate Valve Gearbox provides controlled operation and helps the valve move smoothly. It should also match the valve’s torque, stem dimensions, mounting arrangement, and operating environment.

Why Gearboxes Are Important

Small valves may operate easily with a standard handwheel. However, larger valves can demand significant operating force.

In such applications, a Gate Valve Gearbox makes operation more practical. It can also provide better control when valves are installed in large pipelines or difficult-access locations.

Benefits of Using a Gate Valve Gearbox

A Gate Valve Gearbox provides several advantages for industrial valve applications. These benefits become particularly valuable when valves are large or require substantial operating torque.

Reduced Manual Effort

Large gate valves can be difficult to operate manually. A gearbox increases mechanical advantage and reduces the effort required from operators.

Therefore, workers can open and close valves more comfortably. This advantage is especially useful in large industrial facilities.

Controlled Valve Operation

A gearbox allows operators to control valve movement more gradually. As a result, the valve can be operated without sudden or excessive force.

Controlled operation also helps reduce unnecessary stress on mechanical components.

Higher Torque Transmission

Torque is essential for reliable gate valve operation. A suitable Gate Valve Gearbox transfers the required torque from the operating input to the valve stem.

Correct torque selection helps prevent difficult operation and mechanical overload.

Improved Operational Safety

Heavy manual valve operation can create physical strain. A gearbox reduces the amount of effort needed to operate large valves.

Furthermore, controlled movement gives operators better command over the valve during routine maintenance and pipeline operations.

Long-Term Reliability

Industrial equipment often operates for many years. Therefore, gearbox durability plays an important role in overall system reliability.

Strong housings, accurately manufactured gears, proper bearings, and suitable lubrication can contribute to longer service life.

Choosing the Right Gate Valve Gearbox

Selecting a Gate Valve Gearbox requires more than checking the valve’s physical size. Several technical factors should be evaluated before purchasing.

Determine Operating Torque

The first step is determining the valve’s operating torque. This value helps identify the gearbox capacity required for reliable operation.

The selected gearbox should provide enough torque under actual working conditions. Engineers should also consider additional resistance that may occur during service.

Check Valve Dimensions

The gearbox must be compatible with the valve stem and mounting arrangement. Incorrect dimensions can create installation difficulties.

Therefore, buyers should verify stem diameter, mounting dimensions, connection type, and available installation space.

Consider Operating Conditions

Industrial valves can operate in challenging environments. Dust, moisture, chemicals, high temperatures, and outdoor exposure can affect gearbox performance.

A suitable Gate Valve Gearbox should provide protection appropriate for the installation environment.

Consider Operating Frequency

Some gate valves operate only occasionally, while others may require frequent operation.

Operating frequency can affect gearbox selection and maintenance requirements. Therefore, buyers should provide accurate information about how often the valve will operate.

Applications of Gate Valve Gearboxes

A Gate Valve Gearbox can support valve operation across many industries. Its exact application depends on the valve design and service conditions.

Water Treatment Plants

Water treatment facilities use gate valves to control water movement through pipelines and processing systems.

Large valves can require substantial operating force. Therefore, a gearbox can make routine operation more efficient.

Oil and Gas Industry

Oil and gas facilities use valves throughout pipelines, processing systems, terminals, and storage facilities.

These applications often demand reliable mechanical performance. A properly selected Gate Valve Gearbox can support controlled operation of suitable gate valves.

Power Generation

Power plants use large valves in water, cooling, steam, and other utility systems.

Reliable valve operation is important for plant maintenance and process control. Consequently, durable gearbox solutions can provide practical mechanical assistance.

Chemical Processing

Chemical plants can expose equipment to corrosive substances and demanding operating conditions.

Therefore, gearbox materials, seals, coatings, and protection levels should match the environment.

Industrial Manufacturing

Manufacturing plants use valves across production and utility systems. Operators may need to control water, air, gas, and other process media.

A suitable gearbox reduces manual effort and supports consistent valve operation.

Gate Valve Gearbox Maintenance Practices

Regular maintenance can help extend the operating life of a Gate Valve Gearbox. Preventive inspections can also identify potential issues before they cause downtime.

Inspect the Gearbox

Operators should check the gearbox for unusual noise, vibration, leakage, or increased operating resistance.

Any sudden performance change should receive proper attention. Early inspection can prevent minor issues from becoming major failures.

Maintain Proper Lubrication

Lubrication reduces friction between moving gear components. Therefore, operators should follow the manufacturer’s recommended lubrication schedule.

Using the correct lubricant is equally important. Incorrect lubrication may negatively affect gear performance.

Check Seals and Housing

The gearbox housing should remain properly sealed. Damaged seals can allow water, dust, or other contaminants to enter the mechanism.

Regular inspection helps maintain internal component protection.

Inspect Mounting Components

Mounting bolts and connections should remain secure. Loose components can affect alignment and increase mechanical stress.

A properly installed Gate Valve Gearbox should remain firmly connected throughout normal operation.

Avoid Excessive Force

Operators should never force the gearbox when the valve becomes difficult to operate.

Instead, technicians should investigate the cause. The valve may have internal deposits, stem problems, or another mechanical issue.

Comparing Gate Valve Gearbox With Other Valve Gearboxes

Different valve types require different operating mechanisms. Therefore, buyers should select gearboxes according to valve movement and torque requirements.

A Gate Valve Gearbox is designed for gate-type valves. It provides the mechanical advantage needed to operate the valve stem efficiently.

In comparison, a Plug Valve Gearbox supports the rotational operation of plug valves. Similarly, a Sluice Valve Gearbox is commonly associated with sluice or gate-type valve applications.

Quarter-turn valves may use a Quarter Turn Gearbox designed for approximately 90-degree rotary movement.

The correct choice depends on valve type, torque, operating conditions, mounting requirements, and application needs.

Why Manufacturer Selection Matters

Gearbox performance depends heavily on engineering quality and manufacturing accuracy. Therefore, businesses should evaluate manufacturers carefully before placing an order.

A reliable Gate Valve Gearbox manufacturer should understand valve torque requirements, gear design, material selection, and industrial operating conditions.

Furthermore, suppliers should provide clear technical specifications and appropriate product guidance.

Jayveer Enterprise offers valve-related solutions for industrial applications. Buyers should still compare product specifications and ensure that the selected gearbox matches their specific valve requirements.

Frequently Asked Questions

1. What is a Gate Valve Gearbox?

A Gate Valve Gearbox is a mechanical device that helps operate gate valves by increasing mechanical advantage and transmitting the required torque to the valve stem.

2. Why is a Gate Valve Gearbox required?

Large gate valves can require considerable operating force. A gearbox reduces manual effort and provides controlled valve movement.

3. Where are Gate Valve Gearboxes used?

They are commonly used in water treatment, oil and gas, power generation, chemical processing, manufacturing, and pipeline applications.

4. How do I select the correct gearbox?

Consider operating torque, valve size, stem dimensions, mounting arrangement, operating frequency, environmental conditions, and installation space.

5. Does a Gate Valve Gearbox require maintenance?

Yes. Regular lubrication, seal inspection, gearbox checks, mounting inspections, and performance monitoring help maintain reliable operation.

Conclusion

A Gate Valve Gearbox provides an effective solution for operating large industrial gate valves. It reduces manual effort, improves torque transmission, and supports controlled valve movement.

Furthermore, proper gearbox selection can improve reliability and help reduce unnecessary mechanical stress. Buyers should evaluate torque requirements, valve compatibility, operating conditions, and maintenance needs before selecting equipment.

A well-maintained Gate Valve Gearbox can deliver dependable performance across water treatment, oil and gas, power generation, chemical processing, and manufacturing applications.

Businesses should therefore work with an experienced supplier that understands industrial valve requirements. Jayveer Enterprise can help customers explore suitable gearbox solutions based on their application needs.

If you require a dependable Gate Valve Gearbox, contact Jayveer Enterprise with your valve specifications and operating requirements to discuss a suitable solution.
